TBS6903-X DVB-S2X Dual Tuner PCIe Card высокая Оформление слово Получить карту сбора
Дорогой: пожалуйста Обратите внимание, что этот Картер не примет 7 дней без Причина возврата товара!Пересечение

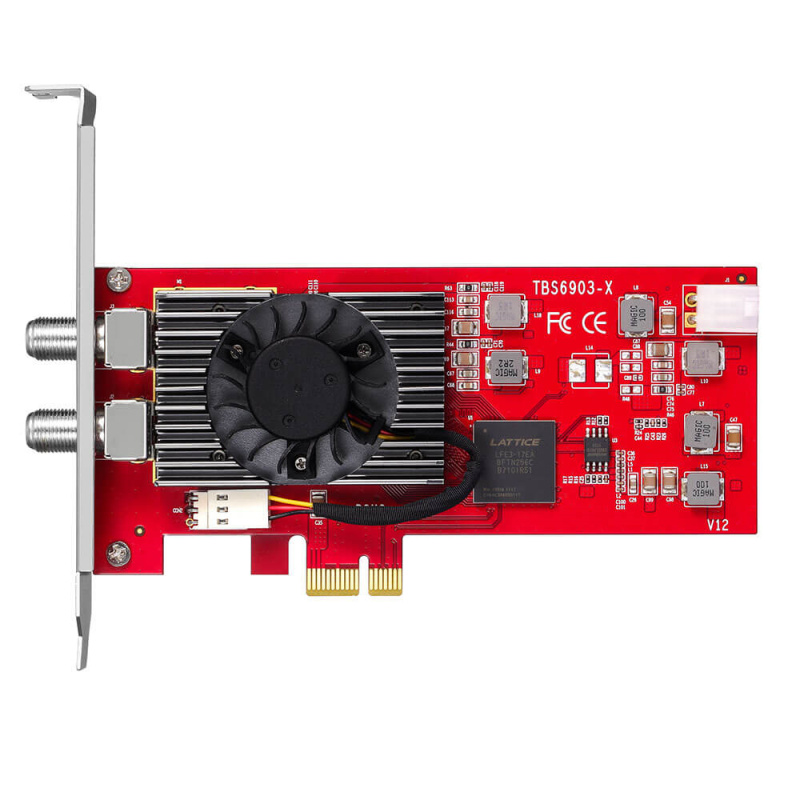

TBS6903-X is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903-X supports not only normal DVB-S2X/S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic&Single TS, which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.
Main Features:
- DVB-S2X/S2 dual tuner
- Watch& record satellite TV/ radio programs on PC
- CCM, VCM, ACM and Multi Input Stream support
- Generic stream mode Support
- Blind scan support
- EPG (Electronic Program Guide) support
- Unicable/one cable compatible
- High-speed data download via satellite
Applications:
- Data receiving
- IPTV streaming
- Media monitoring
Specification:
| Model | TBS6903-X | |
| Connection | PCI-express | |
| 2x RF in | ||
| DVB-S/S2/S2X | ||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK | 2/3, 32/45 | |
| 64APSK | 32/45/L, 11/15, R/5E, 7/9 | |
| R/60, 4/5, R/62, 5/6 | ||
| 128APSK | 3/4, 7/9, 29/45/L, 2/3/L | |
| 256APSK | 31/45/L, 32/45, 11/15/L, 3/4 | |
| VCM, VCM ,CCM | Yes | |
| Power consumption | ||
| Input/ Power: | 12V/7~15W | |
| temperature | 0°~ 60° | |
| System Requirements | Windows XP / Vista/ 7/8/10, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||

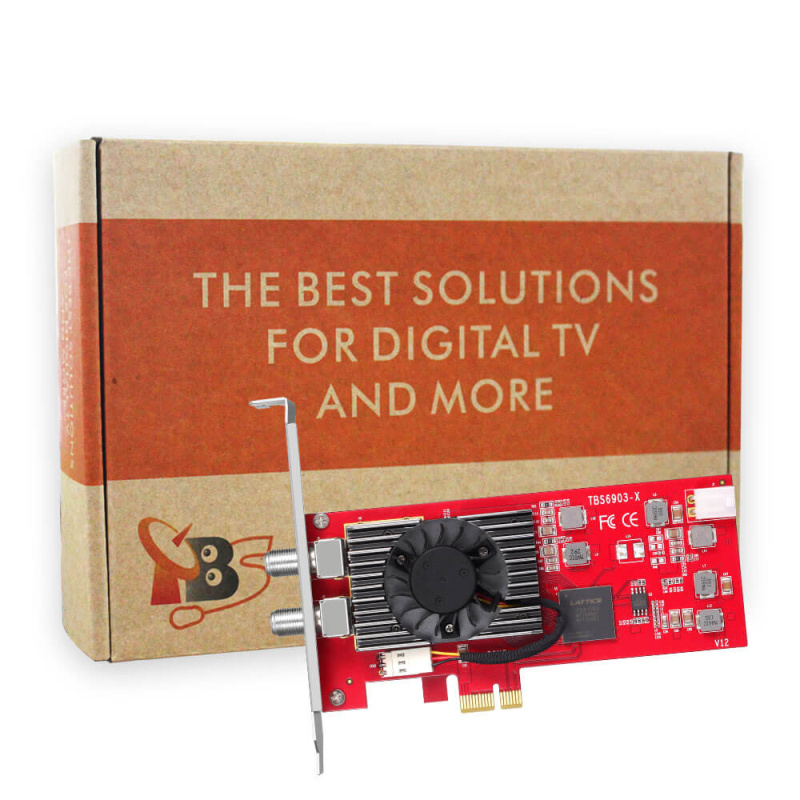

| Package Contents | 1* TBS6903-X | |
| 1* Power cable | ||
Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)
| Msymb/s | Demod |
| QPSK | 180 |
| 8PSK | 120 |
| 16APSK | 90 |
| 32APSK | 72 |
| 64APSK | 60 |
| 128APSK | 51,42 |
| 256APSK | 45 |
