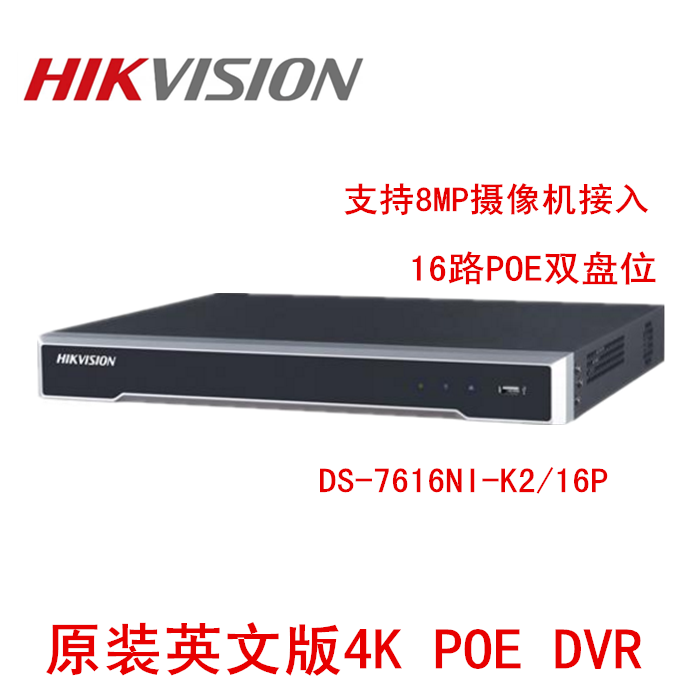

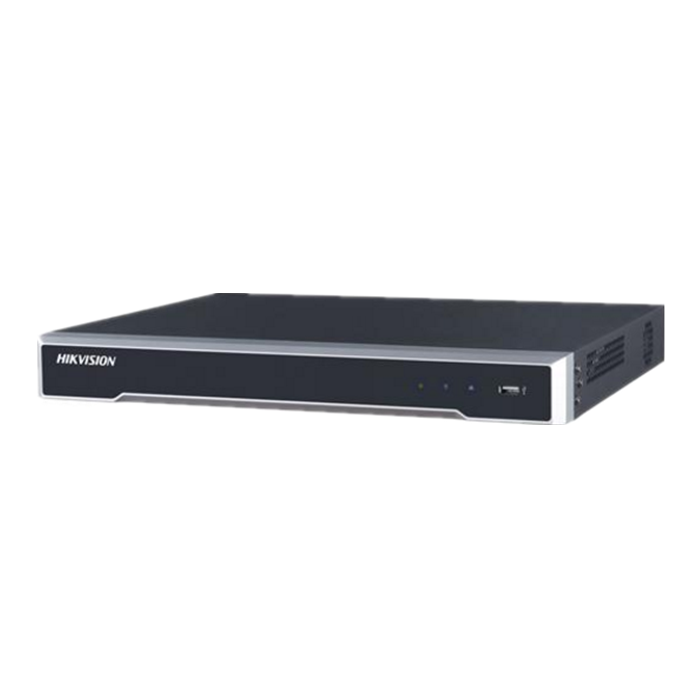

Hikvision Haikang Weiwei English версия DS-7616NI-K2 / 16P 16 Road Poe двойной Pan 4K NVR
- Размеры и комплектации
- Вариации
Цена: 26 080-50 560 руб.
Оригинальная цена~ ¥1630
Доставка по Китаю: ~ ¥29 (464 руб.)
- Продавец:
- a18928768682
- Рейтинг:
- Всего отзывов:
- 0
- Положительных:
- 0
Embedded Plug& Play 4K NVR
• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)
resolution
• 8/16-ch network cameras can be connected with
80M/160M incoming bandwidth
• Up to 2 SATA interfaces
• Plug& Play with up to 16 independent PoE network
interfaces
• Support dual-os to ensure high reliablility of system
running
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input: | | 16-ch |
| Network | ||
|---|---|---|
| Incoming bandwidth: | | 160Mbps |
| Outgoing bandwidth: | | 160Mbps |
| Video/Audio Output | ||
|---|---|---|
| HDMI Output: | | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | | 1-ch, RCA (Linear, 1kΩ) |
| VGA Output: | | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | ||
|---|---|---|
| Capability: | | 8-ch@1080P |
| Live view / Playback: | | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | ||
|---|---|---|
| SATA: | | 2 SATA interfaces for 2 HDDs |
| Capacity: | | Up to 6TB capacity for each HDD |
| External Interface | ||
|---|---|---|
| Network Interface: | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | | 2, USB2.0 |
| Alarm In: | | 4-ch |
| Alarm Out: | | 1-ch |
| POE | ||
|---|---|---|
| Interface: | | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
| General | ||
|---|---|---|
| Power Supply: | | 100 to 200 VAC |
| Consumption(without hard disk and POE): | | ≤ 15 W |
| Working Temperature: | | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity: | | 10 % ~ 90 % |
| Chassis: | | 385 mm chassis |
| Dimensions: | | 385× 315× 52 mm (15.2" 12.4" 2.0") |
| Weight(without HDD): | | ≤ 3 kg (6.6 lb) |
