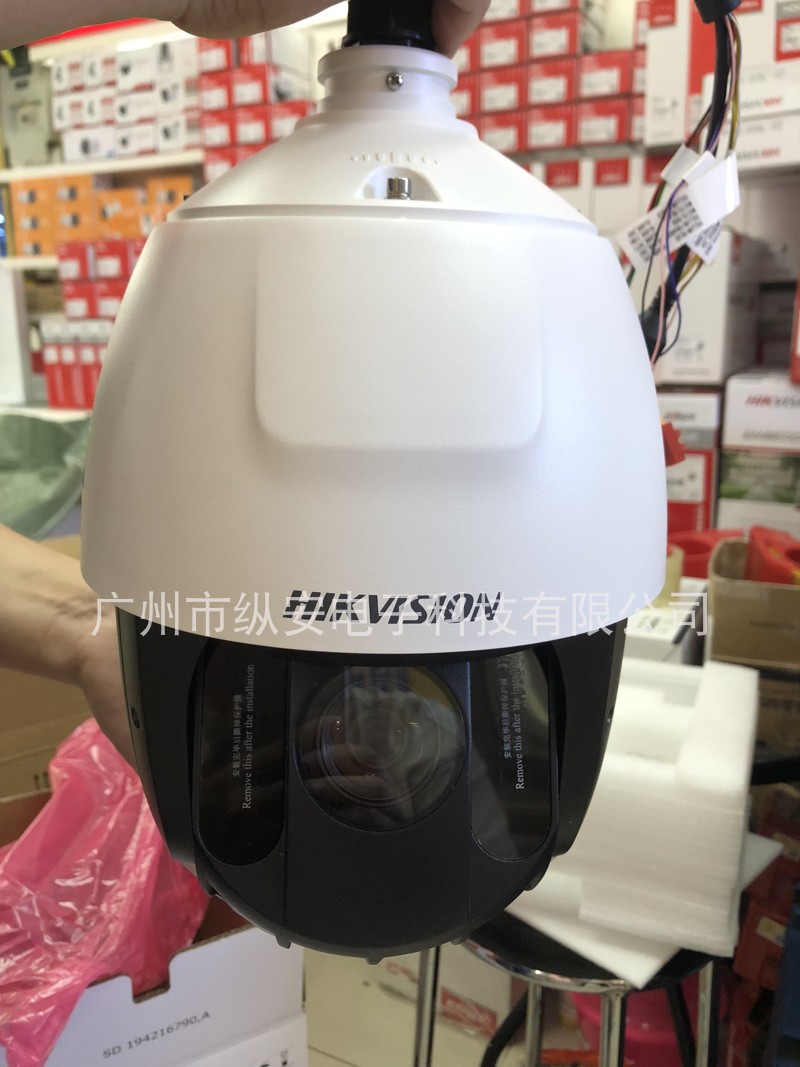

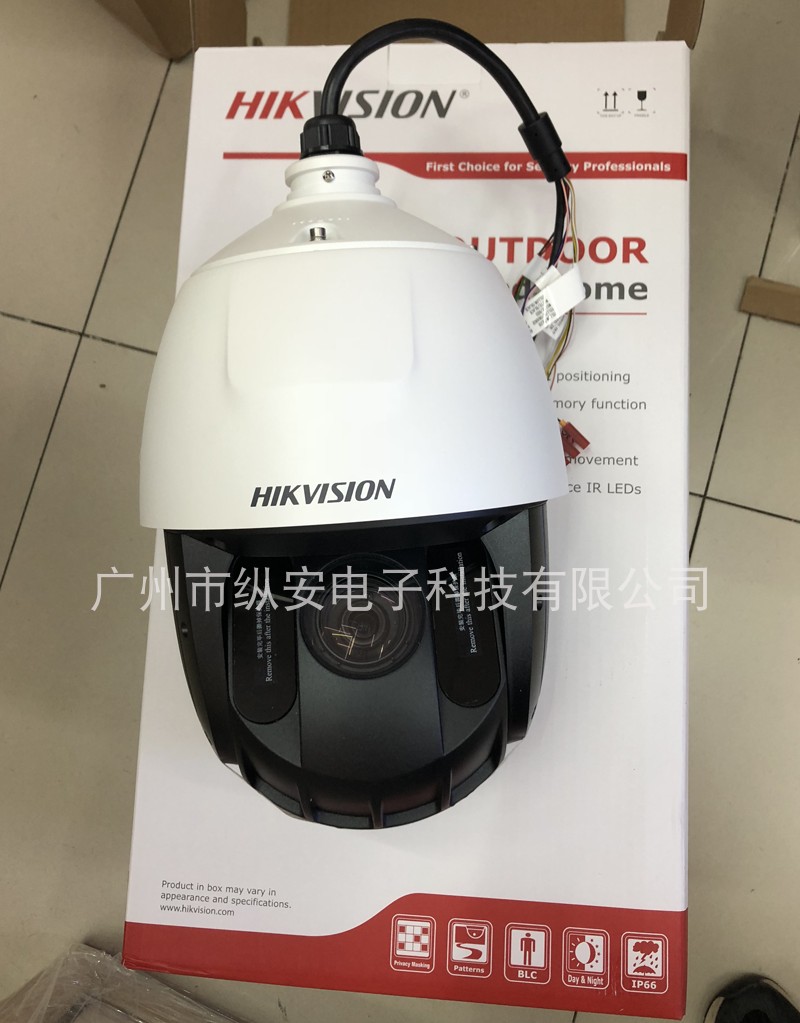

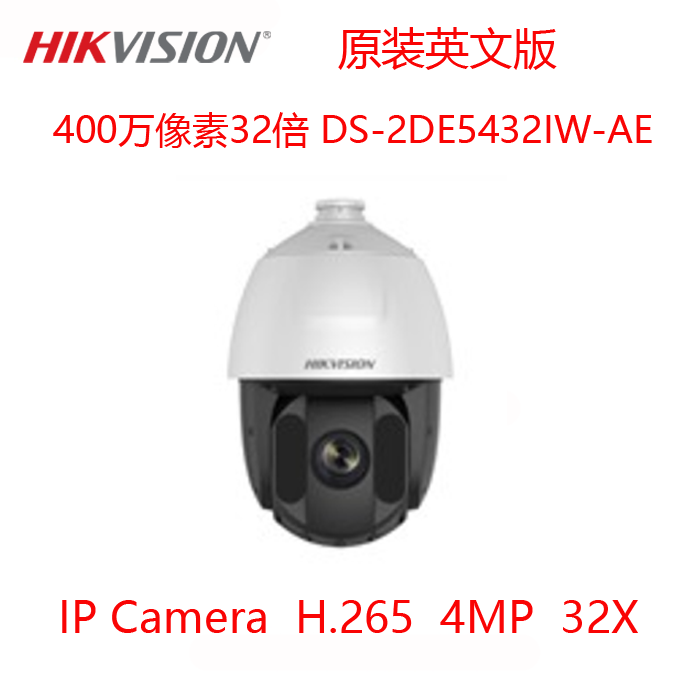

HIKVISION DS-2DE5432IW-AE Английский версия 4MP 32X Network PTZ
- Вариации
- 25mm
Цена: 59 680 руб.
Оригинальная цена~ ¥3730
- Продавец:
- zly568072128
- Рейтинг:
- Всего отзывов:
- 0
- Положительных:
- 0
| Camera | ||
|---|---|---|
| Image Sensor: | | 1/2.5" progressive scan CMOS |
| Effective Pixels: | | 2560(H)×1440(V) |
| Signal System: | | PAL/NTSC |
| Minimum Illumination: | | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance: | | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC: | | Auto/Manual |
| BLC: | | ON/OFF |
| HLC: | | Support |
| Smart defog: | | Support |
| WDR: | | 120dB |
| Shutter Time: | | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Day& Night: | | ICR |
| Digital Zoom: | | 16X |
| Privacy Mask: | | 24 programmable privacy masks; optional multiple colors and mosaics |
| Auto Focus: | | Auto / Semi-automatic / Manual |
| Lens | ||
|---|---|---|
| Focal Length: | | 4.8 mm to 153 mm, 32× optical zoom |
| Zoom Speed: | | Approx. 5.6 s (optical lens, wide-tele) |
| Field of View: | | Horizontal field of view: 61.3° to 2.18° (Wide-Tele) Vertical field of view: 36.9° to 1.22° (Wide-Tele) Diagonal field of view: 68.4 to 2.5° (Wide-Tele) |
| Minimum Working Distance: | | 10 mm to 1500 mm (Wide-Tele) |
| Aperture Range: | | F1.2 to F4.4 |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | | 360°endless |
| Pan Speed: | | Configurable, from 0.1°/s to 120°/s Preset speed: 120°/s |
| Tilt Range: | | -15°-90° (Auto Flip ) |
| Tilt Speed: | | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
| Proportional Zoom: | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | 300 |
| Patrol: | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: | | Support |
| Park Action: | | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display: | | ON/OFF |
| Infrared | ||
|---|---|---|
| IR Distance: | | 150m |
| IR irradiation angle: | | Adjustable by zoom |
| Alarm | ||
|---|---|---|
| Alarm Input: | | 2 |
| Alarm Output: | | 1 |
| Alarm Linkage: | | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
| Input & Output | ||
|---|---|---|
| Audio Input: | | 1-ch audio input |
| Audio Output: | | 1-ch audio output |
| Network | ||
|---|---|---|
| Ethernet: | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | 2560 × 1440 |
| Main Stream: | | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream: | | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: | | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression: | | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| ROI encoding: | | Support 4 areas with adjustable levels |
| Audio Compression: | | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols: | | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View: | | Up to 20 channels |
| Three-Stream: | | Support |
| Storage: | | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| Security Measures: | | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
| Client GUI | ||
|---|---|---|
| Camera Control: | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | Time: Week: Date, 6 formats on the Client |
| Client: | | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser: | | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| General | ||
|---|---|---|
| Language: | | English |
| Power Supply: | | 24 VAC & Hi-PoE |
| Power Consumption: | | Max.: 30 W (Max. 10 W for IR) |
| Working Temperature/Humidity: | | -30 ℃ -65 ℃ (-22 ℉ -149 ℉) (на открытом воздухе) 90% or less |
| Protection Level: | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | | Various mounting modes optional |
| Material: | | ADC 12, PC+10% GF |
| Dimensions: | | Φ 208 mm × 345 mm (Φ 8.19" × 13.58") |
| Weight (approx.): | | Approx. 3.3 kg (7.28 lb) |
