DVB-T2 DVB-S2combo MPEG4 Digigal Receiver USB WIFI TV BOX
Цена: 1 280 руб.
Оригинальная цена~ ¥80
Доставка по Китаю: ~ ¥15 (240 руб.)
- Продавец:
- why3008
- Рейтинг:
- Всего отзывов:
- 0
- Положительных:
- 0
Hardware:
C кожзаменитель : Montage VT6000
Memory: 32X16Mbit DDR2 f #400MHz, Flash: 4M bytes
Demodulator Type: M88DM6000
S2 TUNER: M88TS2022
T2 TUNER: MaxLinear MXL 608

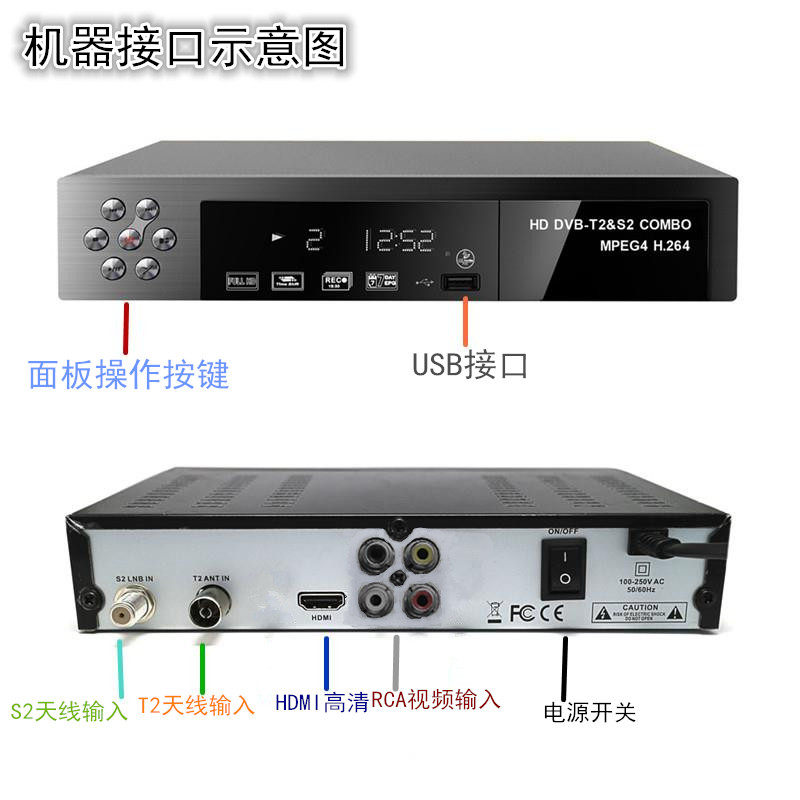

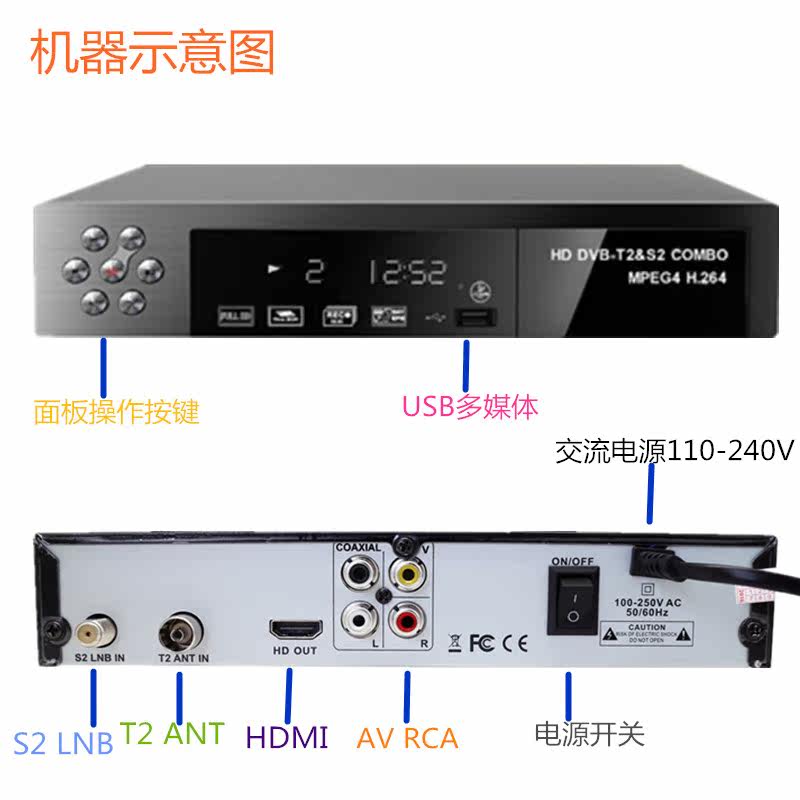

Front Panel: USB 2.0 Embedded One Host,
4-digit LED display on front panel
Red LED Standby,green LED Lock
Panel KEY, POWER, CH+ ,CH-

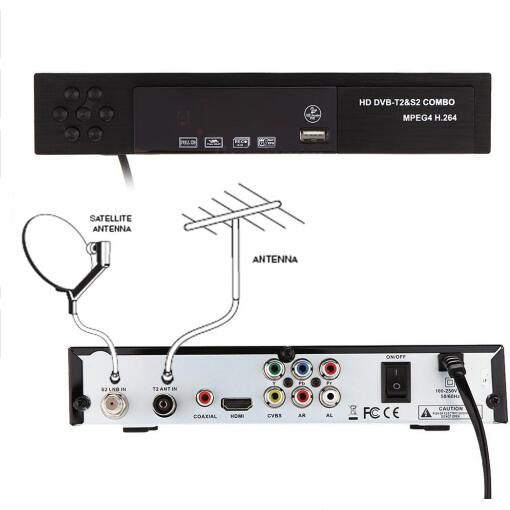

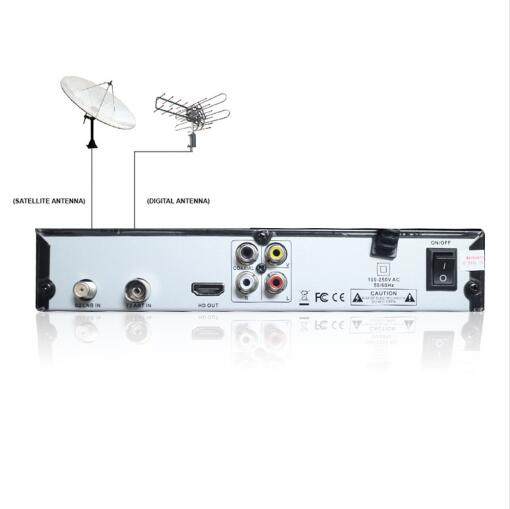

Rear Panel: S2 LNB IN input connector IEC60169-2
T2 ANT input connector IEC-162-2(IEC Female)
HDMI V1.3, RCA CVBS AL AR Connector x1
Ypbpr RCAx1, Coaxial x1, Power AC100~240V 50Hz/60Hz
DVB-T2 Demodulation :
Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency 48~866MHZ, Bandwidth6MHz,7MHz,8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/ 8K/32K, Support Single and multiple PLPS
Input level -83~ -5dBm
DVB-S2 Channel Decoder :
Frequency Range 950MHz-2150MHz, Sensitivity Level - 10~ - 81dBm
Mode IFFT 2k,8k, FEC Mode 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals 1/4,1/8,1/16,1/32, Constellation QPSK.8PSK.16APSK.
Support bisskey,Not support Dobly(AC-3)
"Neighboring channels
immunity and Protection" According to ETSI TR 101 190 V1.2.1
Active Ant Power 13/18V DC # 500mA MAX,Overload Protection
Package includes:
1*Gift Box
1*AV Cable Optional
1*IR Remote Control
1*User Manual
