5MP AHD CCTV Tester Analog CVBS AHD TVI CVI Camera Tester
Цена: 8 100 руб.
Оригинальная цена~ ¥450
Доставка по Китаю: ~ ¥10 (180 руб.)
- Продавец:
- rhymme081
- Рейтинг:
- Всего отзывов:
- 0
- Положительных:
- 0

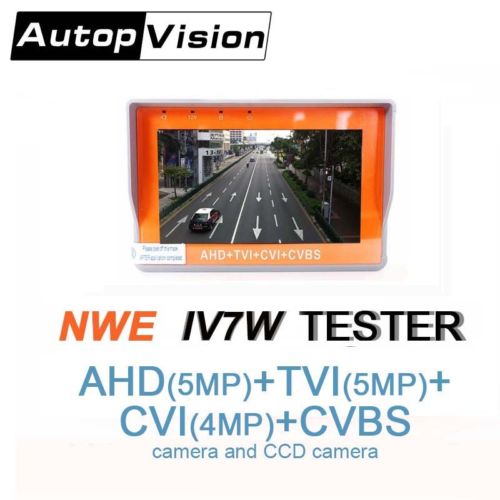

Model: IV7W

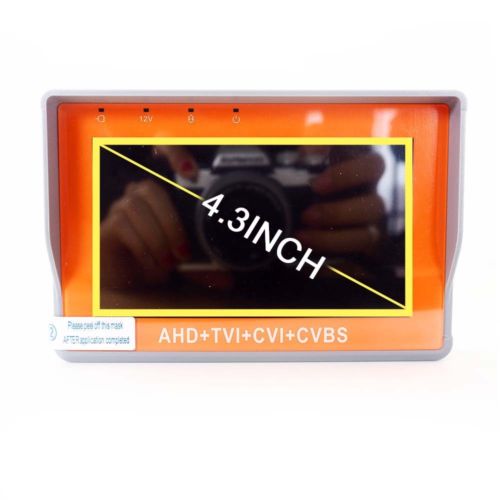

New version 4.3" HD camera tester CCTV camera tester monitor 12V 1A output Support 5MP/4MP Hikvision Coaxial Testing,Support 5MP/4MP AHD Camera Testing.
Support TVI Cameras :5MP, 4MP, 3MP, 1080P , 720P;
Support AHD Cameras :5MP, 4MP, 3MP, 1080P , 720P;
Support CVI Cameras :1080P, 720P;
Analog cameras=video testing updated model
1. video tester
- Video System: NTSC/PAL Automatically recognize
- Video level: 1VPP
- Display screen: 4.3 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color
- Screen adjustment: Video display brightness, contrast, color saturation adjustable,
- LCD backlight brightness adjustable
- Video input / output: 1 channel BNC Video IN
2. HD AHD, TVI Test
- SD signal Format: NTSC,PAL
- Video signal: HD AHD,TVI,CVI,CVBS
- Resolution : D1,720P,960p,1080P,3MP,4MP,5MP
- MAX Support 5MP,4MP AHD 20FPS ; 5MP 4MP TVI 20FPS
- Signal Level: 1Vpp
3. 12V power output
- Power output:
- Temporary power output 12V 1A D
- USBX1 5V1A output
4. Audio test
- Audio test: Input audio signal, and played on the internal speaker
5. Power supply
- Внешний источник питания: DC 5V（2А）
- Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
- Charge: Charge time 3-4 hours Battery power time 8 hours
- Power saving features: Low power consumption, automatic power off, Real-time display of battery level
6. System settings
- Language settings: English
- Auto power off: Disable / 5-60 minutes
7.Cable test
- cable test: Test any two or more wire cable Display connect sequence and remote number
- LED Light: 1*35lm LED light
- Working environment and Specifications: -20 ° C - + 70 ° C / 30% -90% R
Packing List:
- HD AHD+TVI+CVI+CVBS CCTV Tester x 1
- AC/DC Adapter x 1
- Power Output Cable x1
- Transformer x 1
- A/V Cable x 1
- Video Cable x 1
- Date Cable x 1
- Wristbands x 1
IV7S :
Video test
Video System
NTSC/PAL Automatically recognize
Video level
1VPP
Display screen
4.3 inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
Screen adjustment
Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable
Video input / output
1 channel BNC Video IN
HD AHD, TVI Test
SD signal Format
NTSC,PAL
Video signal
HD AHD,TVI,CVI,CVBS
Resolution
D1,720P,960p,1080P
Signal Level
1Vpp
12V power output
Power output
Temporary power output 12V 1A DC
USBX1 5V1A output
Audio test
Audio test
Input audio signal, and played on the internal speaker
Power supply
External power supply
DC 5V.（2А）
Battery-powered
Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge
Charge time 3-4 hours Battery power time 8 hours
Power saving features
Low power consumption, automatic power off, Real-time display of battery level
System settings
Language settings
Chinese, English user selectable
Auto power off
Disable / 5-60 minutes
Cable test
cable test
Test any two or more wire cable Display connect sequence and remote number
LED Light
1*35lm LED light
Working environment and Specifications
-20 ° C - + 70 ° C / 30% -90% RH
Packing List:
HD AHD+TVI+CVI+CVBS CCTV Tester x 1
AC/DC Adapter x 1
Power Output Cable x1
Transformer x 1
A/V Cable x 1
Video Cable x 1
Date Cable x 1
Wristbands x 1
