7 Inch Six In One IP HD CCTV Tester Monitor Analog AHD TVI CVI SDI Camera Tester H.265 4K 4MP 5MP ONVIF WIFI POE 12V Out

IPC-9800MOVTADHS Plus: For IP camera, analog camera, AHD, TVI, CVI, SDI Test(5MP TVI, 4MP CVI, 4MP AHD, SDI/EX-SDI test)+ HDMI in, with Cable tracer, Digital Multi-meter, Optical power meter, Visual fault locator, TDR cable test + Video level meter

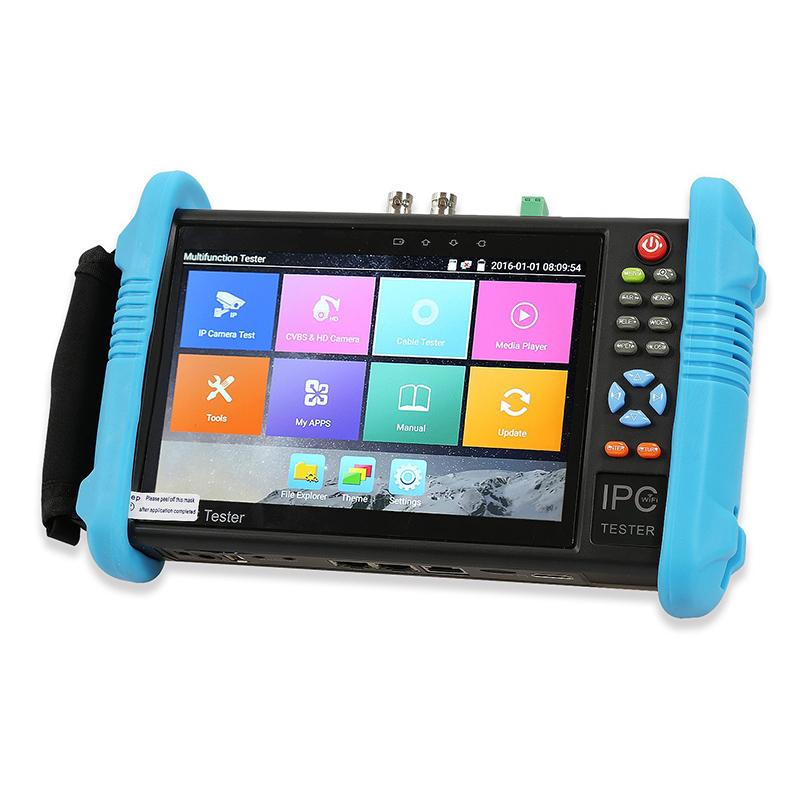

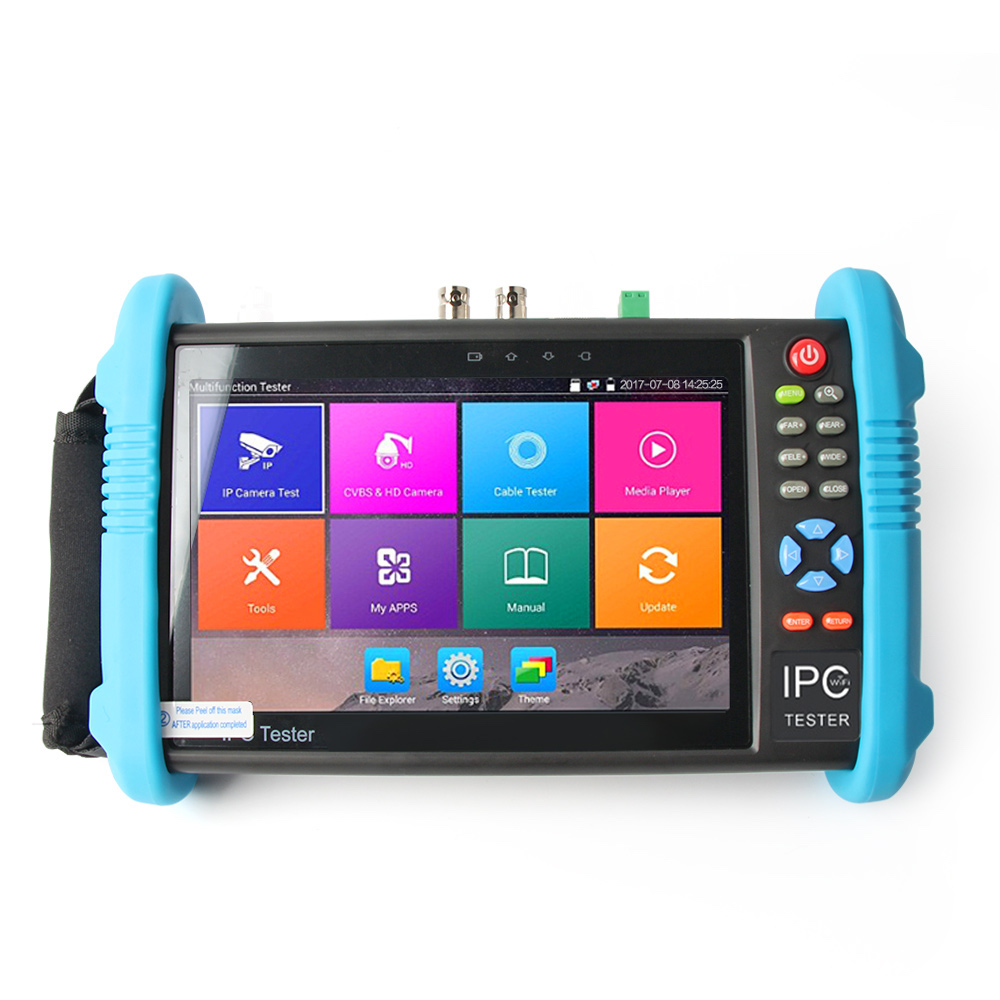

The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions RJ45 Cable TDR cable test, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity

Features:

1.         New -7 inch IPS touch screen,1280*800 resolution

2.         New- H.264 and H .265 ,4K video display via mainstream

3.         IP& CVBS camera test, PTZ controller

4.         New- Rapid video, just by one key to detect all network cameras and auto display

5.         Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

6.         New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP& CVBS

7.         New- Screen management, change function’s icons order, create new directory

8.         New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

9.         Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

10.      New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

11.      Tester Play (screen projection): tester, android version mobile phone and PC display at the same time

12.      New- Screen lock, password lock and pattern lock are optional

13.   New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot

14.      HDMI output ,support 1080P

15.      New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable

16.      New- Traffic monitoring of the tester"LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

17.      New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

18.      ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

19.      Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

20.      New- 4K video files and MKV/MP4 media files play

21.      PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

22.      New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable

23.      8GB SD card including

24.      IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

25.      Display its genuine resolution of the IP camera images

26.      Supports more than 30 protocols such as PELCO-P, PELCO-D

27.      Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

28.      POE voltage measurement, PING test ,IP address scan, port flashing etc

29.      Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

30.      7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours

31.  AHD, HD-TVI, CVI, SDI Camera Test (Optional)-IPC-9800ADH Plus

32. Digital Multi-meter, Optical power meter, Visual fault locator, TDR cable test + Video level meter (Optional)-IPC-9800MOVTADHS Plus
