We are proud our company could provide feedback when OnSemi designed the new KAF-16200 CCD sensor. What is so special about this CCD? Simply put, it is designed to be the best possible sensor for vast majority of astrophotographers and astro-imaging enthusiasts around the world. While there are even greater detectors available, like KAF-16803 in the G4-16000 camera, such huge sensors require at last 3" focusers and field correctors to cover them with good quality image. As opposite, KAF-16200 in the newly introduced G3-16200 camera fits within the field of view of typical 2" focusers and optical correctors, used on absolute majority of amateur scopes. And at the same time it leaves almost no field of view area uncovered, so it allows capturing of really stunning wide field images. In association with great 16 MPx resolution and 6 μm pixels, low read noise and dark current, above average sensitivity and especially uniform and clean field of view, G3-16200 is an ultimate imaging camera for majority of amateur telescopes.

G3-16200 employs the new KAF-16200 CCD sensor

When the first astronomical CCD cameras, intended for amateur astronomers, were introduced, they offered tremendous quantum efficiency, showing deep space objects in a fraction of exposure time compared to film emulsion (plus huge number of other advantages, like digital image processing etc.). But they suffered from one important flaw—limited sensor area compared to film and thus limited field of view.

This situation inverted these days. Cameras like G4-16000 or G4-9000 offer CCD sensor measuring 37 × 37 mm, surpassing the typical film frame area by 50%. But it is really not easy to put together optics, capable to cover such giant sensor. And CCDs do not help the situation with its ability to precisely focus images (we have immediate feedback while focusing) and to digitally process them so every optical aberration is clearly visible. Newtonian telescopes need huge secondary mirrors, 3" focusers and coma-correctors and still fast setups suffer from vignetting in the edges of the field. ED and APO refractors also need 3" focusers and field flatteners else large sensors cannot be used without significant compromises.

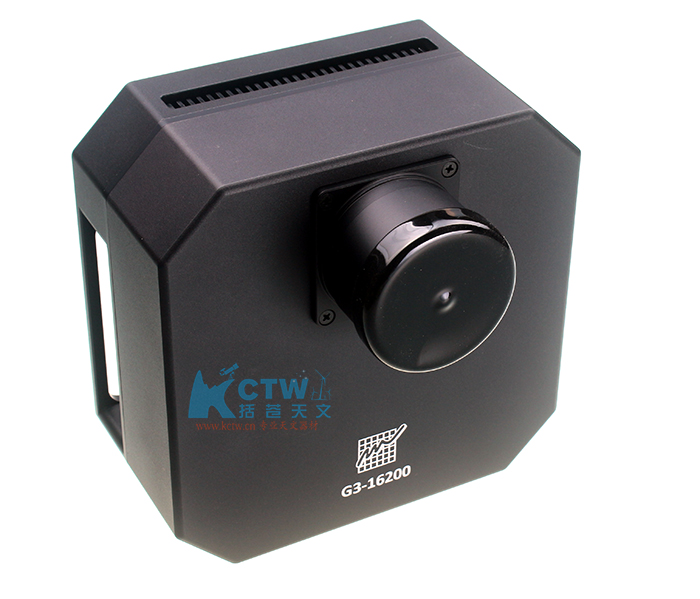

G3-16200 uses the proven medium-format G3 camera shell

Here comes the G3-16200 camera with the new KAF-16200 CCD sensor. While other astronomical cameras use CCD chips primarily designed for different application fields, KAF-16200 has“astronomy imaging” stated as the primary application in its birth certificate.

• Sensor dimensions 27.2 × 21.8 mm (35 mm diagonal) are designed for 2" focusers and correctors, often using M42 or M48 threads.

• Sensor aspect ratio 5:4 is very close to square to optimally fit aberration-free circle within the field of view, but also prolonged enough to allow optimal composition of frame, required by astro-imagers.

• Sensor can be used with 2" filters (od unmounted D 50 mm filters), which are more common and affordable compared to square 50 × 50 mm filters. Also more filters can fit into the same filter wheel and the G3 design allow usage of internal filter wheel (the G4 cameras can use external filter wheels only, as the 50 × 50 mm filters are too big to fit into camera head).

• 6 × 6 μm pixels perfectly correspond to the typical focal lengths of amateur telescopes (between 50 and 150 cm). Smaller pixels limit dynamic range and sensitivity at no added value, because resolution is limited by seeing (air turbulences) and optics, rather than by pixel size. At the same time greater pixels could provide under-sampled images if optics is good, mount perfectly tracks the stars and seeing is above average.

• Read noise around 10 e- RMS is well beyond the sky background noise in the case of long exposures, even if the very best narrow-band filters are used (no to mention standard RGB filters).

• Dark current below 0.1 e-/s/px at 0 C allows very long exposures, providing the sensor is used in camera allowing for proper cooling (like the G3-16200).

• Quantum efficiency reaching 60% surpasses the QE of very popular KAF-8300 CCD and is almost identical to e.g. KAF-16803. So it definitely allows capturing of stunning astrophotographs.

The G3-16200 camera continue in the tradition of Gx astronomical cameras, used for cutting-edge science as well as for the best astronomical images by professional and amateur astronomers all over the world. The G3 system contains models with internal or external filter wheels, wide variety of telescope adapters, off-axis guiding adapters, USB and Ethernet













Особенности Введение:

1: используйте KAI-16200 класс 2 полностью Ассортимент чип

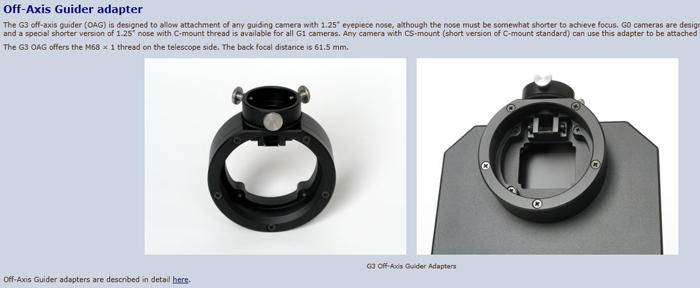

2: ЧПУ алюминий сплав металлический Shell, с M68x1 Snail принт интерфейс（Вы можете выбрать OAG и после добавления OAG, Франция 61,5 мм）

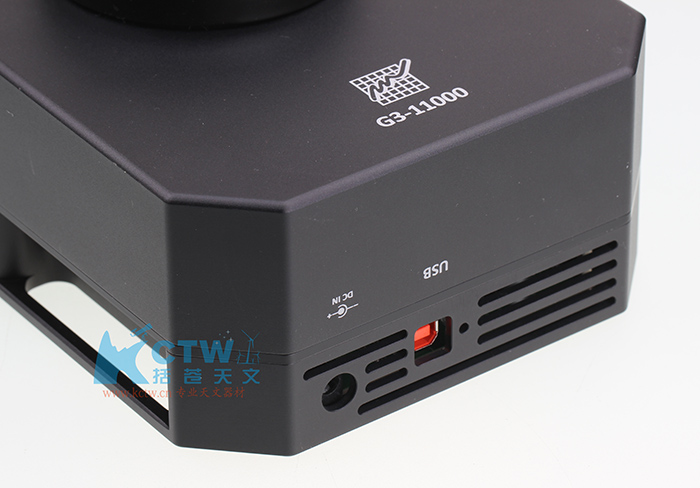

3: USB2.0 высокая Интерфейс скорости, полностью картина низ Время 11 секунд.

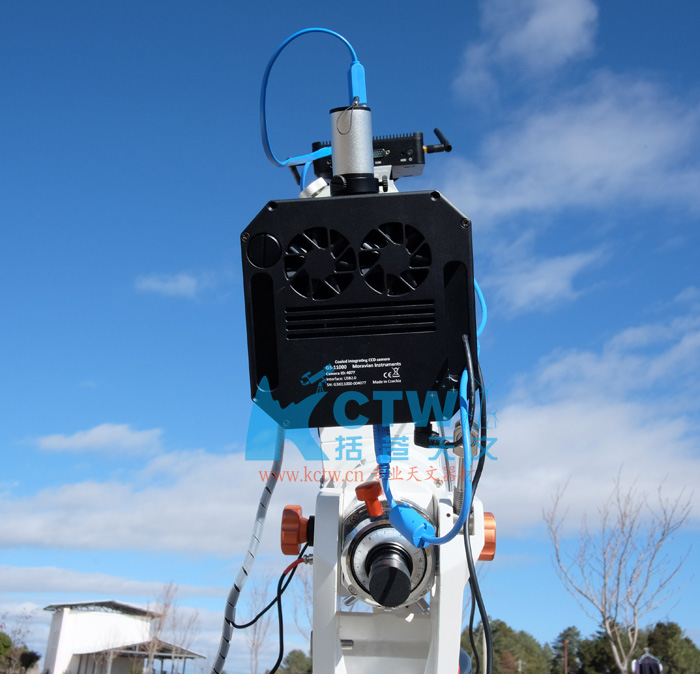

4: вентилятор с двойным охлаждением, максимальная разница в температуре от -45 до 50 градусов

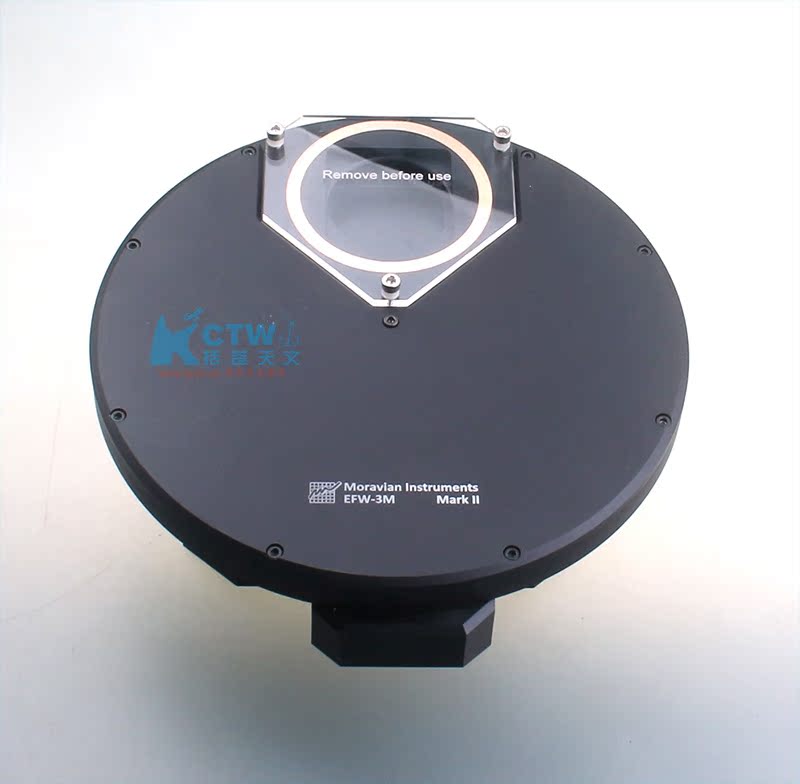

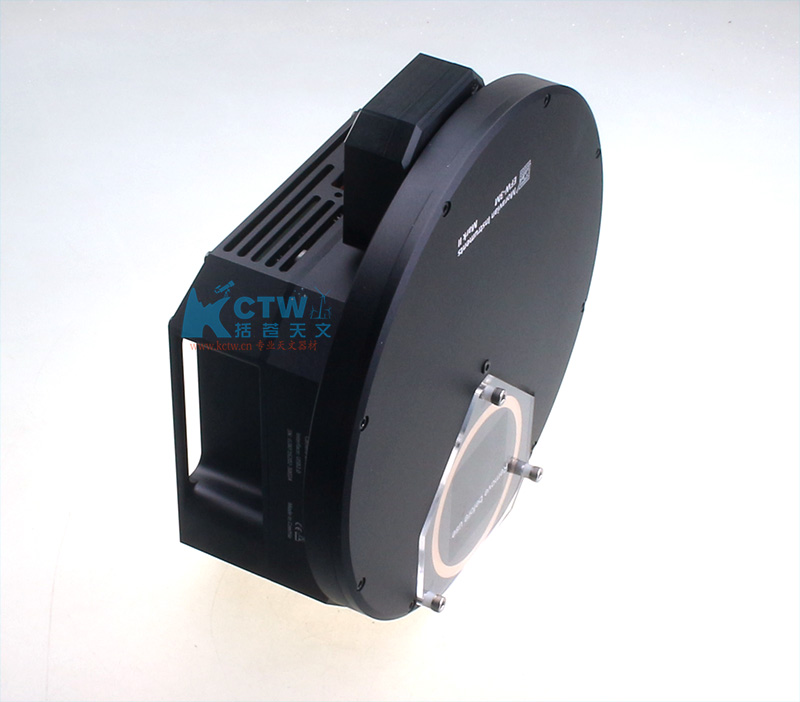

5: Вы можете выбрать 5 -битный электрический фильтр внутри зеркало Колесо или 7 -битный электрический фильтр зеркало Колесо, после добавления OAG, Фрэнк все еще 61,5 мм

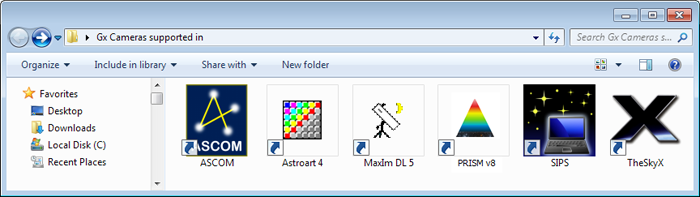

6: Полная поддержка водителя, имеет штатный Driver, Ascom, Skyx, MDL Plug -In, Development SDK пакет Ждать

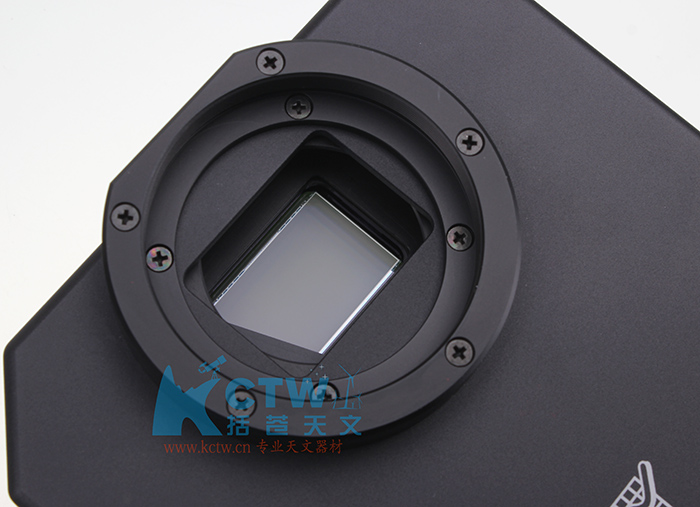

G3-16200 uses 16 MPx OnSemi KAF-16200 CCD with APS-H format.

G3-16200 uses 16 MPx OnSemi KAF-16200 CCD with APS-H format.



Resolution 4540 (H)× 3640 (V) pixels
Pixel size 6μm (H)× 6μm (V)
Image area 27.2 mm (H)× 21.8 mm (V)
Full well capacity ~41,000 e-
Dark current 0.08 e-/s/pixel at 0°C
Dark signal doubling temperature 5.7°C

KAF-16200 CCD
